OPX 33 Very Narrow Aisle Electric Forklift - North America
NOBLELIFT OPX33 — 3,300-Lb Very Narrow Aisle Forklift
Download Brochure
(No reviews yet)
Write a Review
Request a Quote
Call our forklift sales team!
(888) 310-2560
Key Features
Specifications
- Rated Capacity
- 3,300 lb
- Load Center
- 24 in
- Power Type
- Lead Acid/Lithium-Ion
- Tire Type
- Cushion
- Lift Height
- 256 in-374 in
- Fork Length
- 42 in
- Overall Length
- 130.2 in
- Overall Width
- 50/60
- Lowered Mast Height
- 129.23 / 142.63 / 155.6 / 168.63
- Turning Radius
- 82.7 in
- Operating Hours
- New
- Year
- 2026
- Steering
- Electric
- Additional - Battery Type
- Lead-Acid or Lithium-Ion
- Additional - Battery Voltage
- 48V/900Ah
- Additional - Charger Input
- 48V/100A 240V/480V; 3 Phase Charger
- Additional - Drive System
- AC
Description

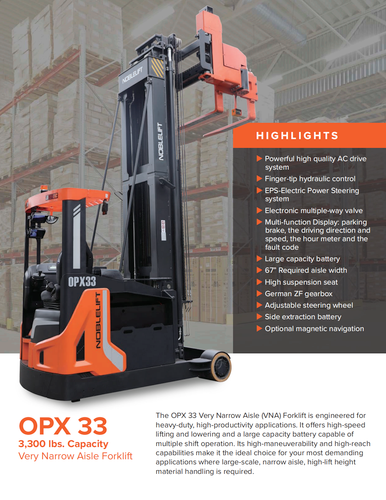

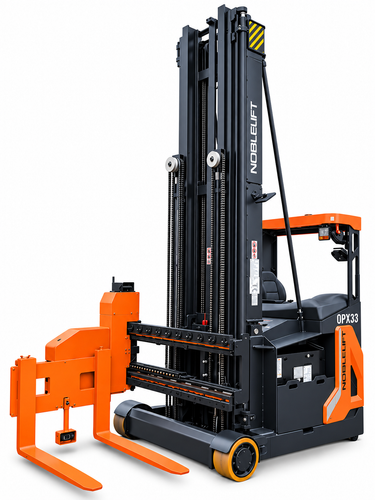

Noblelift OPX 33 3,300-Lb Very Narrow Aisle Electric Forklift
The Noblelift OPX 33 is a 3,300-lb very narrow aisle forklift designed for high-density warehouse storage, high-lift pallet handling and demanding distribution-center applications. This electric VNA forklift combines high-reach capability, an 82.7-inch turning radius and a published required aisle width of approximately 66.9 inches, helping warehouses use available space more efficiently.
With a 24-inch load center, 48V/900Ah industrial battery, lithium-ion option, high-speed lifting and lowering, and an ergonomic operator cab, the OPX 33 is engineered for productive pallet movement in narrow aisles. It is a strong fit for warehouses and distribution centers that need a high-lift VNA forklift for large-scale, narrow-aisle material handling.
The OPX 33 combines the maneuverability of a very narrow aisle electric forklift with the operating visibility, control precision and battery capacity required for intensive warehouse work. Its maintenance-free AC drive system, electric power steering, German ZF gearbox and fingertip proportional controls support smooth, accurate operation throughout the work shift.

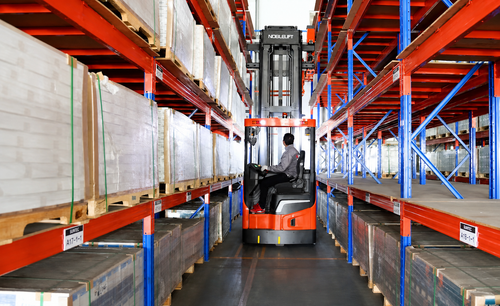

Very Narrow Aisle Design for High-Density Warehousing
A very narrow aisle forklift, commonly called a VNA forklift, is designed to operate in storage aisles that are narrower than those typically used by conventional counterbalanced forklifts or reach trucks. The Noblelift OPX 33 has a published required aisle width of approximately 66.9 inches, while the brochure lists an aisle-width figure of approximately 67 inches for 1,200 x 800 mm pallets.
By supporting pallet handling in narrow storage aisles, the OPX 33 can help warehouse operators increase storage density without expanding the building footprint. Its high maneuverability, high-reach capability and articulated load-handling design make it suitable for applications where floor space, rack height and throughput are important operational priorities.
Typical applications include:
•High-density distribution centers
•E-commerce fulfillment warehouses
•Grocery and consumer-goods warehouses
•Third-party logistics facilities
•Cold-storage and temperature-controlled warehouses, subject to configuration requirements
•Manufacturing component warehouses
•Retail distribution centers
•Pallet storage and retrieval operations
•Facilities converting from wide aisles to very narrow aisles
•Warehouses requiring high-lift electric forklift performance
The OPX 33 is intended for controlled indoor warehouse environments with properly designed aisles, rack systems and operating surfaces. A site assessment should confirm aisle dimensions, pallet size, rack configuration, floor condition, lift height and required clearances before selecting the truck.
3,300-Lb Rated Capacity
The Noblelift OPX 33 has a published rated capacity of 3,300 lb at a 24-inch load center.
The standard specification includes 42-inch forks on the website, while the brochure lists fork dimensions of approximately 1.58 x 4.7 x 33.88 inches and a carriage width of approximately 33.88 inches. Final fork length, attachment selection and capacity depend on the load, load center, mast configuration and application.
For a capacity recommendation, provide the intended pallet weight, load dimensions, load center, storage height, aisle width and rack layout when requesting a quote or application review.
48V/900Ah Industrial Battery
The OPX 33 uses a 48V/900Ah industrial battery designed to support demanding warehouse operations. The large-capacity battery is intended to support multiple-shift operation, depending on workload, duty cycle, charging practices and operating conditions.
The battery uses side extraction to help reduce battery-change and maintenance time. The website also states that the OPX 33 is available in lithium, giving operations the option to evaluate lithium-ion power for their duty cycle and charging strategy.
The standard brochure specification lists a 48V/100A, 240V/480V three-phase charger. Charger selection and electrical requirements should be confirmed for the specific truck and facility.
High-Performance AC Electric Drive System
The OPX 33 uses a maintenance-free AC drive system with high-quality German components, including a Schabmüller motor, Curtis control system and high-precision German ZF gearbox. This configuration is designed to provide efficient travel performance, smooth control and reliable operation in demanding warehouse environments.

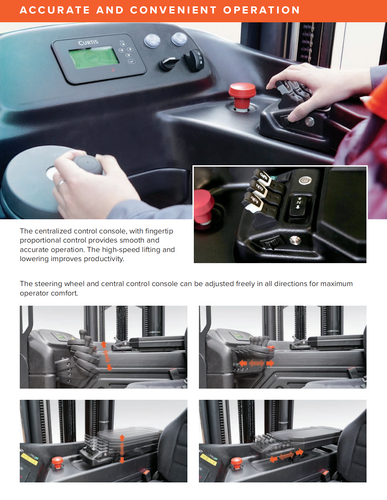

The centralized control console uses fingertip proportional controls to provide smooth and accurate operation of travel, lifting, lowering and load-positioning functions. High-speed lifting and lowering are designed to improve productivity during repeated pallet storage and retrieval cycles.

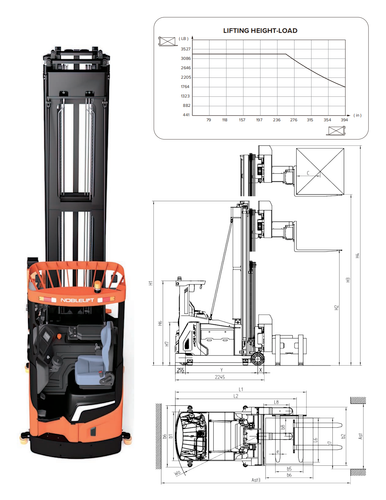

High-Lift Capability for Vertical Storage
The OPX 33 is built for high-lift, high-density storage applications. The website lists fork-height options from 256 inches to 374 inches, while the brochure includes multiple mast configurations and a lifting-height/load chart that should be reviewed for the specific load weight and residual-capacity requirement.
Actual capacity at height depends on mast selection, load center, attachment, pallet dimensions, load weight and other operating conditions. Buyers should confirm the required lift height and capacity chart before ordering a VNA forklift for a specific rack system.
Designed for VNA Maneuverability
The OPX 33 has a published 82.7-inch turning radius, helping the truck maneuver within very narrow warehouse aisles.
The brochure lists an aisle-width requirement of approximately 66.9 inches and an aisle-width figure of approximately 67 inches for 1,200 x 800 mm pallets. Actual required aisle width varies with pallet dimensions, rack design, load overhang, fork length, truck configuration and operating method.
Its narrow-aisle performance makes the OPX 33 a suitable candidate for warehouse redesign projects, including applications where a business is evaluating higher rack storage, reduced aisle widths or increased pallet positions per square foot.

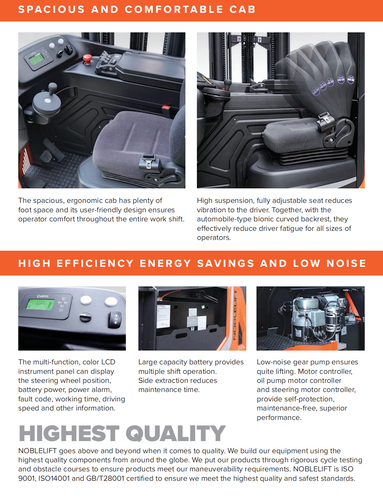

Operator-Focused Ergonomic Cab
The OPX 33 includes a spacious ergonomic operator cab designed for visibility, control and comfort during extended warehouse shifts. The cab provides generous foot space, and both the steering wheel and central control console can be adjusted in multiple directions to accommodate operator preferences.
The high-suspension, fully adjustable seat is designed to reduce vibration and operator fatigue. Its automotive-style curved backrest and adjustable positioning support a more comfortable operating posture for a range of operator sizes.
Operator-focused features include:
•Centralized control console
•Fingertip proportional hydraulic controls
•Adjustable steering wheel
•Multi-function color LCD display
•High-suspension, fully adjustable seat
•Spacious footwell and ergonomic cab layout
•Electric power steering
•High visibility through the mast
•Dual-screen, three-camera monitoring system

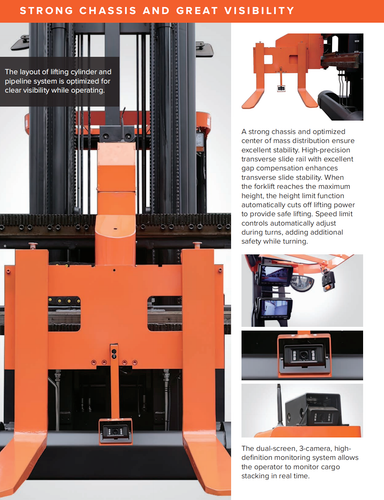

Visibility and Real-Time Load Monitoring
The OPX 33 is designed to provide clear visibility while the operator travels, positions the truck and stores pallets at height. The lifting-cylinder and pipeline layout is optimized to support visibility through the mast.
A dual-screen, three-camera, high-definition monitoring system allows the operator to monitor cargo stacking in real time. This feature can help improve awareness during high-level pallet placement, although operators must always follow site procedures, training requirements and applicable safety standards.
The multi-function color LCD display provides operating information such as steering-wheel position, battery power, power alarms, fault codes, working time and driving speed. The brochure also identifies display information for the parking brake, driving direction, speed, hour meter and fault code.
Stability and Integrated Safety Systems
The OPX 33 uses a strong chassis and optimized center-of-mass distribution to support stability during narrow-aisle operation. A high-precision transverse slide rail with gap compensation is designed to enhance transverse-slide stability during load positioning.
When the forklift reaches maximum height, the height-limit function automatically cuts off lifting power. Speed-limit controls automatically adjust during turns to add an additional layer of control while maneuvering. The truck also uses an electric spring-loaded parking brake and regenerative/hydraulic service braking as listed in the brochure specifications.
Safety performance depends on proper operator training, rack and aisle design, floor conditions, load characteristics, maintenance and compliance with applicable regulations. The OPX 33 should be evaluated as part of the complete warehouse operating system.
Low-Noise, Energy-Efficient Operation
The OPX 33 is engineered for efficient electric warehouse operation and low noise. The brochure identifies a low-noise gear pump, while the website describes controller self-protection, maintenance-free performance and superior operating efficiency.
The brochure lists a sound level of approximately 70 dB(A) under the stated test conditions. Actual sound levels vary with operating environment, floor condition, load and equipment condition.
Easy Maintenance and Diagnostics
The OPX 33 is designed to make routine service more accessible. Key components are positioned for easier access, and the side-extraction battery design can reduce the time required for battery service and replacement.
CAN communication protocols simplify diagnostics, support system reliability and can help reduce downtime by making fault information easier to identify. The motor controller, oil-pump motor controller and steering-motor controller include self-protection functions intended to support maintenance-free performance.
Optional Magnetic Navigation and Configuration Support
Optional magnetic navigation is available for operations seeking guided VNA travel within defined warehouse aisles. Navigation requirements depend on the facility layout, floor design, rack arrangement, traffic plan and operating procedures.
The OPX 33 is also available in lithium, allowing businesses to compare industrial lead-acid and lithium-ion power options based on shift length, charging windows, battery-change procedures, energy strategy and total cost of ownership.
Why Choose the Noblelift OPX 33 VNA Forklift?
The Noblelift OPX 33 is a strong candidate for businesses that need a 3,300-lb electric VNA forklift for high-density warehouse storage. It combines narrow-aisle maneuverability, high-lift capability, a large-capacity battery, precision operator controls, an ergonomic cab, visibility systems and electric drive performance in one dedicated very narrow aisle forklift truck.
Frequently Asked Questions
What is the Noblelift OPX 33?
The Noblelift OPX 33 is a 3,300-lb very narrow aisle electric forklift designed for high-density warehouse storage, high-lift pallet handling and demanding narrow-aisle material-handling applications.
How much can the OPX 33 VNA forklift lift?
The OPX 33 has a published rated capacity of 3,300 lb at a 24-inch load center. Actual capacity at height depends on mast configuration, load center, attachment and operating conditions.
What aisle width does the OPX 33 require?
The OPX 33 website lists a required aisle width of 66.9 inches, and the brochure lists an aisle-width figure of approximately 67 inches for 1,200 x 800 mm pallets. The final aisle requirement depends on pallet size, rack layout, load overhang, fork dimensions and truck configuration.
How high can the OPX 33 lift?
The website lists fork-height options from 256 inches to 374 inches. The correct mast and residual capacity must be selected based on the required storage height, load weight, load center and rack configuration.
What battery does the OPX 33 use?
The standard published specification is a 48V/900Ah industrial battery. The OPX 33 is also available in lithium, depending on the desired power and charging configuration.
Is the OPX 33 a reach truck?
The OPX 33 is a dedicated very narrow aisle electric forklift, not a conventional stand-up reach truck. It is designed specifically for high-density VNA warehouse applications requiring narrow-aisle maneuverability, high reach and precise pallet handling.
What is the turning radius of the OPX 33?
The OPX 33 has a published turning radius of 82.7 inches.
Does the OPX 33 have operator cameras?
Yes. The OPX 33 features a dual-screen, three-camera, high-definition monitoring system designed to help the operator monitor cargo stacking in real time.
Does the OPX 33 have magnetic navigation?
Optional magnetic navigation is available for the OPX 33. The suitability of this option depends on the warehouse floor, aisle layout and operating requirements.
What industries use a VNA forklift?
VNA forklifts are commonly used in distribution, e-commerce fulfillment, grocery, retail, third-party logistics, manufacturing and other warehouse operations where storage density and vertical pallet access are priorities. The OPX 33 is designed for controlled indoor warehouse applications with properly configured aisles and racks.
