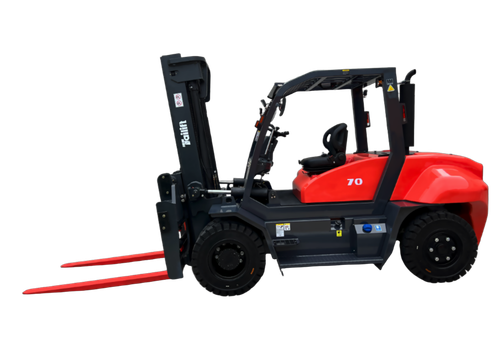

TAILIFT PFD70—15,500-Lb Pneumatic-Tire Diesel Forklift
Heavy-duty lifting for demanding industrial applications
The Tailift PFD70 is a heavy-duty 15,500 lb diesel forklift engineered for high-capacity material handling in lumber yards, manufacturing facilities, distribution centers, construction-material operations, and other demanding industrial environments.
With a rated capacity of 15,500 lb (7,000 kg) at a 24-inch load center, the PFD70 combines a durable counterbalance chassis, diesel power, high-performance hydraulics, and a range of operator-focused features. The truck is specified with a fork positioner and sideshift, helping operators handle large, heavy, and variable loads with greater control and positioning flexibility.
The PFD70 is available with two-stage and three-stage mast configurations, allowing the truck to be matched to different lift-height and overhead-clearance requirements. Its heavy-duty construction, pneumatic or solid tire options, and industrial-grade components make it a practical choice for continuous material-handling work.
Key benefits
•15,500 lb / 7,000 kg rated capacity at a 24-inch load center
•Kubota V3800-TIE5B diesel engine with 83.0 kW rated output at 2,400 rpm
•Heavy-duty, high-carbon-steel chassis designed for demanding applications
•Fork positioner and sideshift configuration for improved load handling
•Two-stage and three-stage mast options
•Up to 130 inches of lift height on the listed two-stage configuration
•Optional lift heights listed up to 236 inches on three-stage configurations
•Pneumatic or solid tire options, depending on configuration
•High ground clearance for uneven industrial work areas
•LED front and rear lighting for improved visibility
•Rear-view visibility and wide-angle rear-view mirrors
•Adjustable suspension seat with retractable seat belt
•Adjustable steering wheel and ergonomic operator controls
•Instrument panel with clear operating and maintenance indicators
•Optional heated, air-conditioned, defrost-equipped cab
•AdBlue replenishment access and diesel emissions technology
•Mechanical handbrake and hydraulic service braking system
Built for heavy-duty material handling
Durable chassis and high-capacity performance
The PFD70 uses a heavy-duty chassis designed to withstand demanding work cycles, high loads, and industrial operating conditions. Its counterbalance design provides a stable platform for handling large loads, while the high-capacity hydraulic system supports lifting, lowering, and load-positioning functions.
The brochure lists a maximum drawbar pull of 64,000 N with load and a gradeability rating of 34% with load, supporting work on ramps, yard approaches, and other challenging surfaces when operated within applicable site and safety requirements.
Kubota diesel power
The PFD70 is powered by a Kubota V3800-TIE5B engine. The brochure lists a rated engine speed of 2,400 rpm, rated output of 83.0 kW, four cylinders, and a displacement of approximately 3.769 liters.
The engine package includes emissions and fuel-efficiency technologies described in the brochure, including EGR, DOC, DPF, SCR, and AdBlue systems. These technologies are designed to support cleaner operation and compliance with applicable emissions requirements for the specified configuration.
Flexible mast configurations
The PFD70 brochure includes two-stage and three-stage mast options. The listed two-stage configuration provides a maximum fork height of 130 inches (3,300 mm). Three-stage options in the specification table are listed with maximum fork heights ranging from 157 inches (4,000 mm) to 236 inches (6,000 mm), depending on the selected mast configuration.
Mast selection should be matched to the required lift height, overhead clearance, load center, attachment, and site conditions. Confirm the final mast, tire, attachment, and capacity configuration with your Tailift representative before purchase.
Operator visibility and comfort

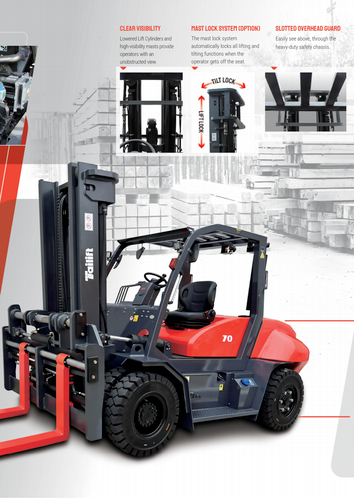

The PFD70 is designed to help operators maintain control and visibility during demanding shifts. Listed features include lowered lift cylinders, high-visibility mast components, a slotted overhead guard, rear-view visibility, wide-angle mirrors, rear assist grips with horn buttons, LED front and rear lights, an adjustable suspension seat, adjustable steering wheel, and an easy-to-read instrument panel.
For cold-weather or enclosed applications, the brochure also lists an optional cab equipped with heating, air conditioning, and defrost functions.
Typical applications
The Tailift PFD70 is well suited to applications that require high-capacity lifting and durable outdoor operation, including:
•Lumber yards and wood-product distribution
•Sawmills and timber processing facilities
•Building-material warehouses
•Steel, pipe, and fabricated-metal handling
•Manufacturing and industrial production
•Construction-material staging
•Palletized products and heavy unit loads
•Outdoor yards and loading areas
Frequently asked questions
How much can the Tailift PFD70 lift?
The Tailift PFD70 is rated for 15,500 lb (7,000 kg) at a 24-inch load center in the configuration specified by the brochure. Actual capacity varies by mast, attachment, load center, tire configuration, and other options.
Is the PFD70 a diesel forklift?
Yes. The PFD70 is an internal-combustion counterbalance forklift powered by a Kubota V3800-TIE5B diesel engine.
What engine is used in the Tailift PFD70?
The brochure identifies the engine as the Kubota V3800-TIE5B, with four cylinders, approximately 3.769 L displacement, 83.0 kW rated output, and a rated speed of 2,400 rpm.
What is the maximum lift height?
The listed two-stage mast reaches 130 inches (3,300 mm). The brochure also lists three-stage mast options with maximum fork heights from 157 inches (4,000 mm) to 236 inches (6,000 mm), depending on configuration.
Does the PFD70 include sideshift?
The brochure specifies a fork positioner with sideshift for the listed 15,500 lb configuration. Confirm the exact attachment and capacity rating on the final truck quotation and capacity plate.
Can the PFD70 be used in a lumber yard?
Yes. Its high lifting capacity, diesel power, heavy-duty chassis, industrial tires, and attachment configuration make it suitable for lumber yards and other outdoor material-handling operations, subject to site conditions and proper operator training.
Is a cab available?
The brochure lists a cab option equipped with heating, air conditioning, and defrost functions. Availability depends on the selected configuration.
