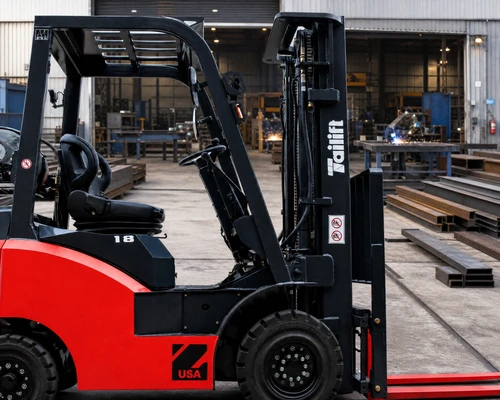

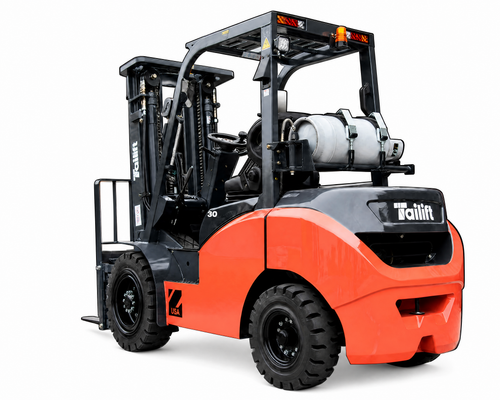

The Tailift PFG36 is a 8,000-lb internal-combustion forklift equipped with pneumatic tires and side shift, giving it the application versatility needed for demanding material-handling operations. It is part of Tailift’s Z Series of pneumatic-tire counterbalanced trucks, which covers capacities from 3,600 to 8,000 lb.
With a 24-inch load center, LPG power, a Kubota WG2503 engine and a four-wheel seated configuration, the PFG36 is designed for heavy lifting in warehouses, manufacturing facilities, loading areas, shipping and receiving operations, lumber yards and other industrial environments.
The PFG36 combines a 8,000-lb rated capacity with the durability, terrain versatility and serviceability expected from a pneumatic-tire forklift. Its heavy-duty chassis, clear-visibility mast design and operator-focused features support productive material handling in demanding work environments.
The PFG36 uses pneumatic tires, making it well suited for operations that require more versatility than a typical cushion-tire warehouse forklift.
It can be a strong choice for businesses where the forklift regularly moves between indoor facilities and outdoor areas such as paved yards, loading areas and shipping docks. The Z Series is designed for terrain versatility and heavy lifting, while the pneumatic-tire configuration provides additional flexibility for industrial applications.
Typical applications include:
For primarily smooth indoor applications with very tight operating areas, a cushion-tire forklift may be a better choice. For operations that require a counterbalanced truck with pneumatic tires and the ability to handle demanding industrial environments, the PFG36 provides a versatile solution.
The PFG36 has a published rated capacity of 8,000 lb at a 24-inch load center.
The brochure lists standard 48-inch forks, with mast and attachment configurations available according to the requirements of the application. Available options include dual wheels, hinged forks, rotating forks, a shovel and a bale clamp.
The PFG36 is powered by a Kubota WG2503 engine configured for LPG operation. The brochure lists a rated output of 61.6 HP at 2,700 rpm, a four-cylinder, 2.491-liter engine displacement and a powershift transmission with one forward and one reverse speed.
The brochure also states that the Kubota engines used in the Z Series comply with EPA Tier 4 and EU Stage V emissions regulations.
The PFG36 has a published 102.4-inch turning radius, helping operators maneuver the forklift in warehouse, loading-dock and industrial environments.
Features include:

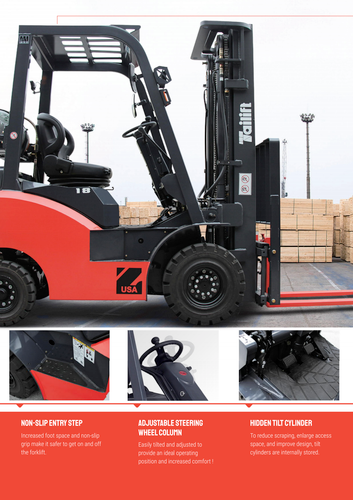

The multifunctional instrument panel is positioned for easy viewing and displays operating information to help keep the operator informed of the forklift’s functions. The adjustable steering column provides flexibility for operator comfort, while the suspension seat is designed to help reduce vibration and fatigue during operation.

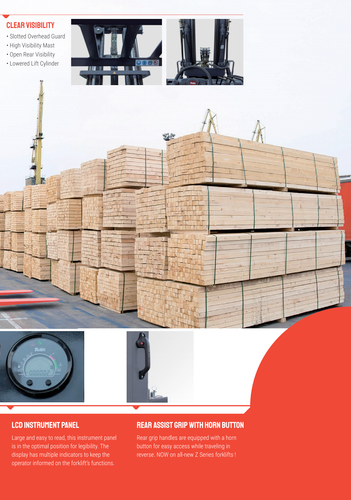

The PFG36’s clear-visibility design combines a slotted overhead guard, high-visibility mast, open rear visibility and a lowered lift cylinder. Together with the non-slip entry step and rear assist grip with horn button, these features are intended to support operator awareness and ease of use during loading, travel and reversing.

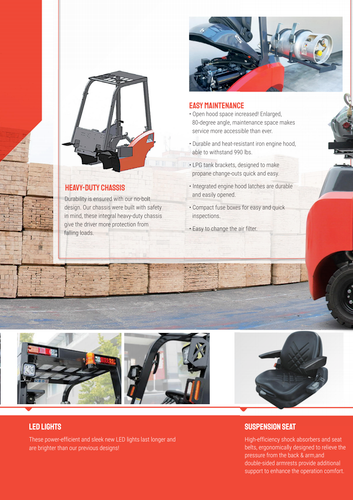

The PFG36 is designed to simplify routine service access. Its enlarged engine-hood opening provides a wider maintenance area, while the heat-resistant iron hood is designed to withstand loads of up to 990 lb. Integrated hood latches, compact fuse boxes and easy air-filter access help make inspections and routine maintenance more convenient.
The PFG36 has a published rated capacity of 8,000 lb at a 24-inch load center.
Yes. The PFG36 is an internal-combustion pneumatic-tire forklift in Tailift’s Z Series.
The PFG36 uses LPG power through a Kubota WG2503 engine.
The PFG36 is designed for industrial material handling in warehouses, manufacturing facilities, loading areas, shipping and receiving operations, yards and other environments where pneumatic-tire versatility and heavy lifting are required.
The PFG36 has a published turning radius of 102.4 inches.
The PFG36 is powered by a Kubota WG2503 LPG engine. The brochure lists 61.6 HP at 2,700 rpm.
