The Noblelift PSR30 3,000-lb Lithium Walkie Reach Truck combines the capabilities of a compact straddle truck and a counterbalanced reach truck in one versatile electric material-handling solution.
Designed for warehouses, distribution centers, retail operations, loading docks, trailers, and other space-constrained environments, the PSR30 features a pantograph reach mechanism, adjustable straddle legs, integrated side shift, proportional hydraulics, electric power steering, and a 24V 200Ah LiFePO4 lithium battery.
With lift heights available from 106 inches to 189 inches, the PSR30 provides the flexibility to handle a wide range of pallet storage and material-handling requirements.
One of the PSR30's biggest advantages is its ability to perform two different material-handling functions.
With the pantograph extended, the PSR30 can operate similarly to a counterbalanced truck, allowing operators to position loads directly from elevated storage locations to the floor.
With the pantograph retracted, the PSR30 functions more like a compact straddle reach truck, providing a tighter turning capability for narrow aisles, confined storage areas, trailers, and other applications where space is limited.
This versatility can allow one truck to perform tasks that would traditionally require two different types of material-handling equipment.
The PSR30 features Moon Walking technology, allowing the tiller handle to rotate 90 degrees so the operator can control the truck from the side.
This provides improved visibility and maneuverability when working in confined areas.
The PSR30 has a 62.8-inch turning radius and can right-angle stack a standard 40 x 48-inch pallet in approximately 95.13 inches, according to the manufacturer's specifications.
Moon Walking mode can be particularly useful for:
The standard PSR30 is equipped with a 24V 200Ah LiFePO4 lithium battery and fast-charging system.
The manufacturer's brochure states that the lithium battery can be fully charged in approximately 2 hours. The system is also designed to support opportunity charging during breaks and shift changes.
The lithium battery system incorporates battery management and thermal-management technology.
The PSR30 is designed for controlled, precise material handling. Features include:
The proportional hydraulic system allows the operator to make controlled adjustments when positioning pallets and loads.

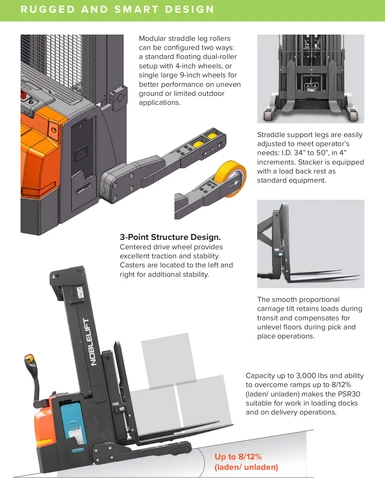

The PSR30's adjustable straddle legs provide additional flexibility when handling different pallet configurations.
The straddle support can be adjusted from approximately 34 to 50 inches inside dimension, in 4-inch increments.
This makes the PSR30 suitable for applications requiring flexibility around different pallet sizes, load configurations, and storage layouts.
The PSR30 is designed for a wide range of warehouse and material-handling applications, including:
Its combination of reach capability, adjustable straddle legs, compact maneuverability, and lithium-electric power makes it particularly useful where conventional forklifts may require more operating space.
If you need the lifting capability of a reach truck but don't have the space for a conventional sit-down forklift, the PSR30 provides a different approach.
The combination of 3,000-lb capacity, pantograph reach, Moon Walking maneuverability, adjustable straddle legs, integrated side shift, proportional controls, and lithium-ion power gives businesses a versatile solution for challenging warehouse environments.
Rather than using a conventional forklift for every application, the PSR30 can provide a compact electric alternative for pallet handling, stacking, loading, and storage operations.
The PSR30 is a 3,000-lb electric walkie reach truck with a pantograph reach mechanism. It combines characteristics of a compact straddle truck and a counterbalanced reach truck.
The PSR30 has a rated lifting capacity of 3,000 lb with a 24-inch load center.
The PSR30 is available with maximum lift heights of 106, 126, 157, 177, and 189 inches, depending on the model configuration.
Yes. The PSR30 is designed for applications where maneuverability and operating space are important. Its Moon Walking function, compact design, 62.8-inch turning radius, and adjustable straddle legs make it suitable for narrow aisles and confined areas.
Moon Walking allows the PSR30's tiller to rotate 90 degrees, allowing the operator to control the truck from the side. This can improve visibility and maneuverability when operating in confined spaces.
The standard PSR30 uses a 24V 200Ah LiFePO4 lithium battery.
The manufacturer's brochure states that the lithium battery can be fully charged in approximately 2 hours.
Yes. The PSR30 has adjustable straddle legs with an inside dimension adjustable from approximately 34 to 50 inches, in 4-inch increments.
Yes. Integrated side shift is standard on the PSR30.
The manufacturer identifies the PSR30 as a Walkie Reach Truck. Its pantograph reach mechanism allows it to perform functions associated with both a counterbalanced truck and a straddle reach truck.
The PSR30 can be used in warehouses, distribution centers, retail stores, supermarkets, manufacturing facilities, loading docks, delivery operations, trailers, containers, and other areas where compact pallet-handling equipment is required.
The manufacturer's literature describes the lithium system as supporting opportunity charging during breaks and shift changes, potentially reducing the need for battery changes in suitable operating applications.
