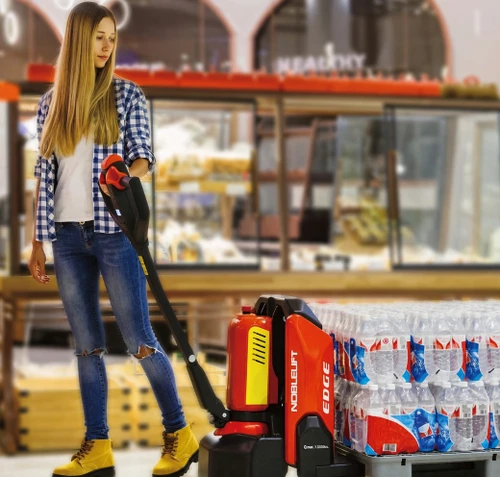

NOBLELIFT PTE33N (The Edge 33)—3,300 Lb Capacity Lithium Electric Pallet Truck

The Noblelift PTE33N EDGE 33 is a compact 3,300 lb lithium electric pallet truck designed to make pallet handling faster, easier, and more productive. Combining a maintenance-free lithium battery, tight turning radius, ergonomic controls, and fully electric operation, the EDGE 33 is an ideal powered pallet jack for warehouses, retail operations, delivery applications, trailers, containers, and other confined spaces.

With a 3,300 lb rated capacity, 24-inch load center, 110V battery charger, and a turning radius as tight as approximately 50 inches, the PTE33N provides the maneuverability and lifting capability needed for everyday material-handling applications without the physical effort required by a manual pallet jack.

Compact Electric Pallet Truck for Tight Spaces

The PTE33N is designed for applications where space is limited. Its compact footprint and tight turning radius make it particularly useful in delivery trucks, trailers, shipping containers, elevators, mezzanines, retail stores, and smaller warehouse environments.

The truck can also be operated with the tiller in an upright position using its turtle-speed function, helping operators maneuver in especially confined areas.

With standard 27" wide x 45.3" long forks, the EDGE 33 is designed to handle common pallet configurations while maintaining a compact overall design. A 48" fork configuration is also available.

3,300 lb Lithium-Ion Power

The Noblelift EDGE 33 uses a 24V/20Ah maintenance-free lithium battery. Lithium-ion power eliminates many of the maintenance requirements associated with conventional lead-acid batteries while providing convenient charging and opportunity-charging capability.

The standard charging system is a 24V/8A 110V charger, making the PTE33N particularly convenient for operations that want to charge the pallet truck using standard electrical power. An additional battery, additional charger, and optional 36Ah lithium battery/charger are available.

The battery can also be removed and exchanged quickly, helping minimize downtime in applications where additional batteries are used.

Ergonomic Electric Pallet Jack

The EDGE 33 replaces the physical pushing and pulling associated with manual pallet jacks with fully electric travel and lifting.

Its ergonomic tiller features large, easily accessible controls designed for use even when operators are wearing gloves. The integrated PIN-code panel and LCD display provide operating information including battery discharge status, operating hours, and diagnostic error codes.

Additional operator features include:

• Electric travel

• Electric lift and lowering

• Dual butterfly-style thumb controls

• Emergency reverse button

• Horn

• Turtle-speed button

• PIN-code access

• LCD display

• Battery discharge indicator

• Operating-hour counter

• Onboard diagnostics

• Ergonomic soft-grip tiller

Low Maintenance, Reliable Design

The PTE33N is designed to minimize routine maintenance and simplify service access. Noblelift uses a hydraulic lifting design without hoses or pipes, reducing potential leakage points.

The truck's frame incorporates stamped steel construction and a reinforced steel apron to protect major components. Its reinforced fork design is engineered for durability and easier pallet entry and exit.

The Curtis controller and CAN-bus technology also provide electronic diagnostics and make system analysis and adjustments easier for service personnel.

Applications

The Noblelift PTE33N EDGE 33 is well suited for:

• Warehouses

• Distribution centers

• Retail stores

• Delivery operations

• Shipping and receiving

• Manufacturing facilities

• Trailer loading and unloading

• Container handling

• Mezzanine warehouses

• Confined warehouse spaces

• General pallet handling

Whether you are replacing a manual pallet jack or adding powered equipment to an existing material-handling fleet, the EDGE 33 provides an economical way to increase productivity while reducing operator fatigue.

Frequently Asked Questions

What is the Noblelift PTE33N EDGE 33?

The Noblelift PTE33N EDGE 33 is a 3,300 lb lithium electric pallet truck, also commonly called a powered pallet jack, electric pallet jack, or walkie pallet truck.

How much can the PTE33N lift?

The PTE33N has a rated capacity of 3,300 lb at a 24-inch load center.

Is the PTE33N a lithium pallet jack?

Yes. The EDGE 33 uses a 24V/20Ah maintenance-free lithium battery. Optional battery configurations are available, including a 36Ah lithium battery.

Does the Noblelift PTE33N have a charger?

Yes. The standard PTE33N specification includes a 24V/8A 110V charger. Noblelift also lists an additional charger and optional 36Ah lithium battery/charger as available options.

Can the PTE33N be opportunity charged?

Yes. Noblelift specifically describes the EDGE lithium system as supporting fast charging and opportunity charging, allowing operators to charge during breaks or between operations.

What is the turning radius of the PTE33N?

The listed turning radius is approximately 50 to 52.3 inches, depending on configuration. This tight turning radius makes the EDGE 33 suitable for confined spaces.

What size forks does the PTE33N use?

The standard fork configuration is 27 inches wide by 45.3 inches long. A 48-inch fork configuration is also available.

Where can the PTE33N be used?

The EDGE 33 is particularly useful in warehouses, retail operations, delivery applications, trailers, containers, elevators, mezzanines, and other areas where maneuverability is important.

Is the PTE33N better than a manual pallet jack?

The PTE33N provides powered travel and lifting, reducing the physical effort required to move palletized loads. For businesses moving pallets frequently, a powered pallet truck can help reduce operator fatigue and improve handling productivity.

Is the PTE33N suitable for loading trailers and containers?

Yes. Its compact design, tight turning radius, and turtle-speed maneuvering function make the PTE33N particularly suited to confined areas such as trailers and shipping containers.

Who should buy a 3,300 lb electric pallet jack?

The PTE33N is a practical choice for businesses that routinely move palletized loads up to 3,300 lb and want a compact electric alternative to a manual pallet jack. It is particularly relevant to warehouses, distributors, retailers, manufacturers, delivery operations, and shipping departments.

Why choose the Noblelift EDGE 33?

The PTE33N combines 3,300 lb capacity, lithium-ion power, a compact turning radius, 110V charging, ergonomic controls, low maintenance, and opportunity charging in a relatively compact powered pallet truck. It is designed to provide an economical upgrade from manual pallet handling.
